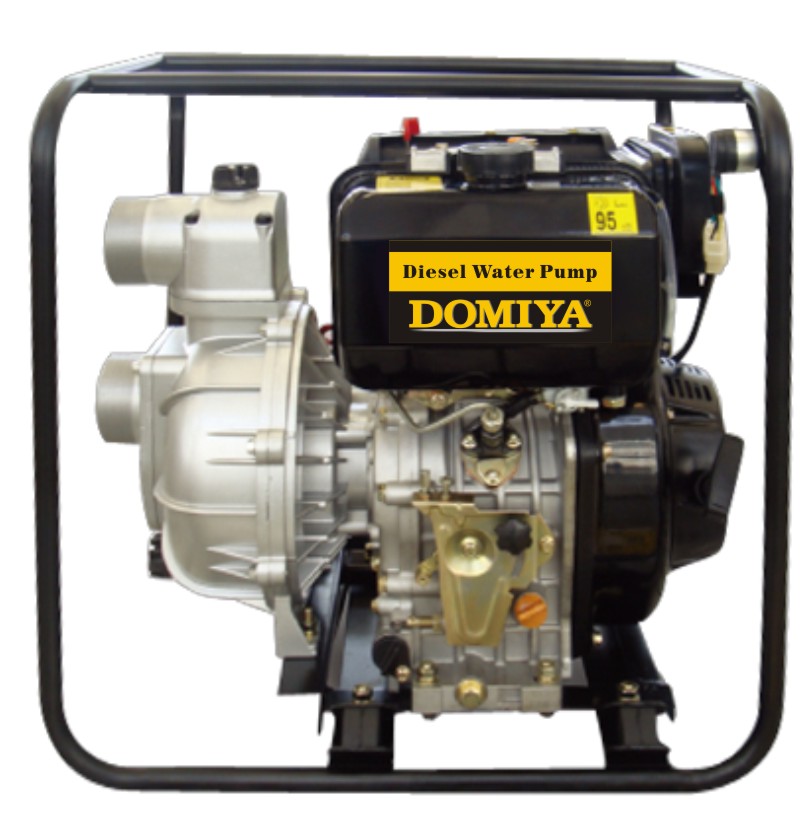

DM30DH(E)

Inlet/outlet At Size(mm/in):

80    3.15

Displacement Q.max(m3/h):

78

Lift H.max (m/ft):

26(85.3)

Suction (m/ft):

7(22.97)

Speed (rpm):

3600

Engine Model:

DM186F/E

Rated Power (kw/hp):

6.3(8.5)

Displacement(ml/cu.in):

406(24.78)

Starting System:

RECOIL STARTER / ELECTRIC STARTER

Fuel Tank Capacity (l/gal.):

5.5(1.21)

Continuous Working Time(h):

2.5

Overall Dimension (L x W x H)(mm):

665 X 490 X 620

Dry Weight (kg/lbs.):

64(140.8)

Ref.QTY/20' FCL(SETS):

99
