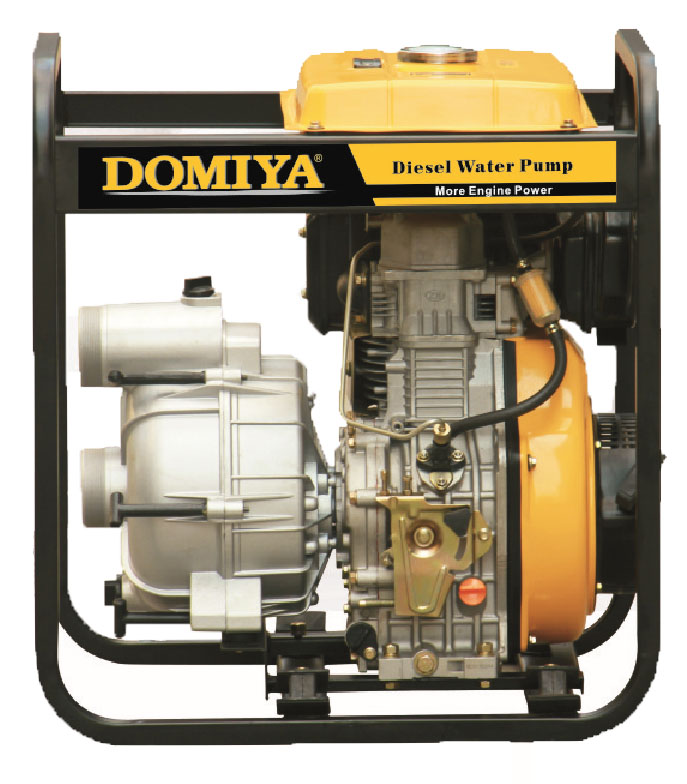

DM30DT(E)

Inlet/outlet At Size(mm/in):

80    3.15

Displacement Q.max(m3/h):

78

Lift H.max (m/ft):

26(85.3)

Suction (m/ft):

7(22.97)

Speed (rpm):

3600

Engine Model:

DM178F/E

Rated Power (kw/hp):

4.0(5.5)

Displacement(ml/cu.in):

296(18.06)

Starting System:

RECOIL STARTER / ELECTRIC STARTER

Fuel Tank Capacity (l/gal.):

3.5(0.77)

Continuous Working Time(h):

2.5

Overall Dimension (L x W x H)(mm):

600 X 470 X 570

Dry Weight (kg/lbs.):

56(123.2)

Ref.QTY/20' FCL(SETS):

99
