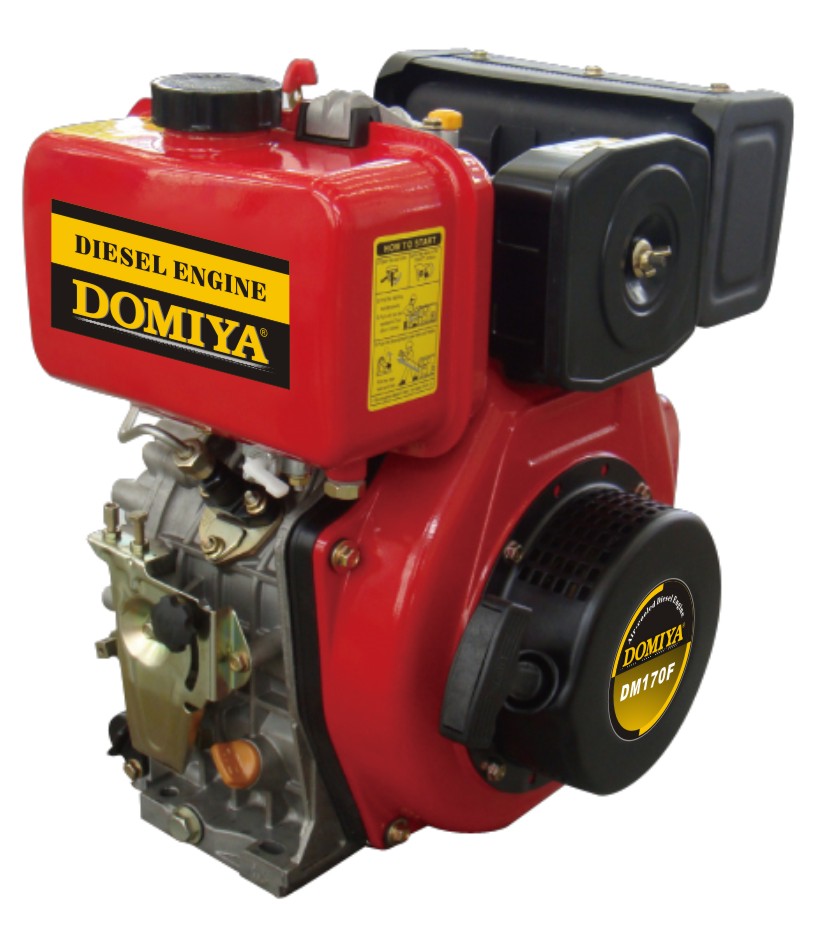

DM170F（E）

Engine Type:

Single Cylinder, 4-stroke, Air-cooled, Direct injection, Diesel Engine

Bore X Stroke(mm):

70 X 55

Displacement(ml):

211

Engine Speed(rpm):

3000/3600

Compression Ratio:

20:1

Rated Output Power(kw/hp):

2.5(3.5)/3000

Rated Output Power(kw/hp):

2.8(3.8)/3600

Fuel:

O# OR-10#light Diesel Oil

Fuel Tank Volume (L/gal.):

2.5(0.55)

Fuel Consumption Rate g(ml)/wk.:

285(339)

Lubrication Oil Volume L(gal.):

0.8(0.18)

Power-take-off:

Crankshaft

Starting System:

Recoil Or Electric

Overall Dimension (LxWxW) mm:

420 X 380 X 470

Dry Weight Kg(lbs):

26(57.2) Recoil
31(68.2) Electric

Ref.QTY/20' FCL(SETS):

390
