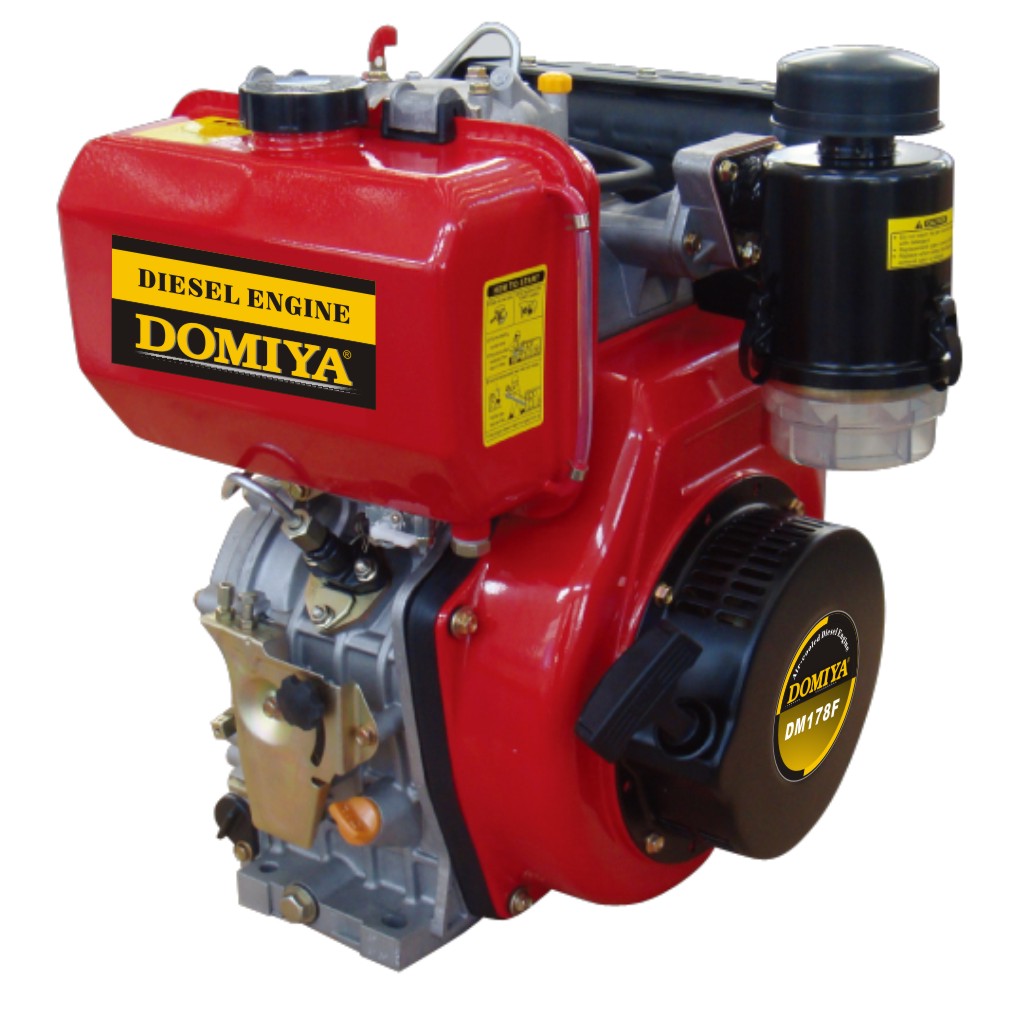

DM178F（E）

Engine Type:

Single Cylinder, 4-stroke, Air-cooled, Direct injection, Diesel Engine

Bore X Stroke(mm):

78 X 62

Displacement(ml):

296

Engine Speed(rpm):

3000/3600

Compression Ratio:

20:1

Rated Output Power(kw/hp):

3.7(50)/3000

Rated Output Power(kw/hp):

4.0(5.5)/3600

Fuel:

O# OR-10#light Diesel Oil

Fuel Tank Volume (L/gal.):

3.5(0.77)

Fuel Consumption Rate g(ml)/wk.:

293(337)

Lubrication Oil Volume L(gal.):

1.1 (0.24)

Power-take-off:

Crankshaft

Starting System:

Recoil Or Electric

Overall Dimension (LxWxW) mm:

480 X 460 X 520

Dry Weight Kg(lbs):

33(72.6) Recoil
38(83.6) Electric

Ref.QTY/20' FCL(SETS):

325
