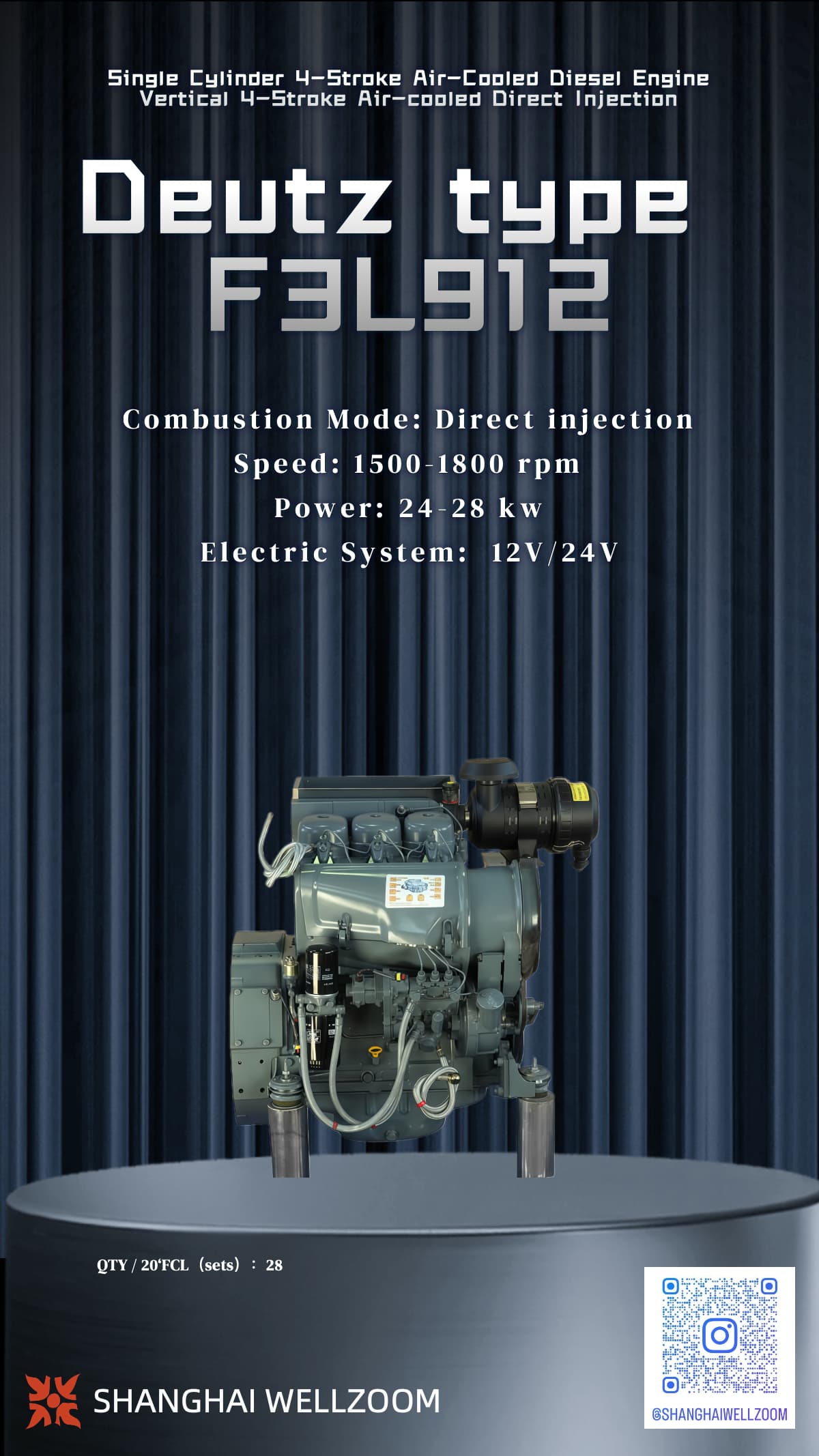

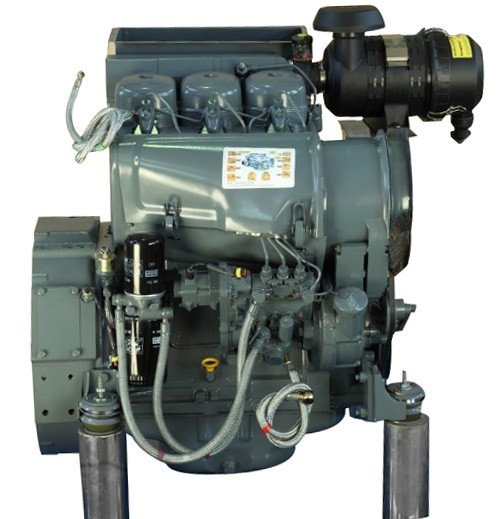

Deutz type F3L912A

Air-Cooled Diesel Engine For Construction Equipment

Numbers of Cylinder:   3

Induction System:   Naturally aspirated

Type:   Vertical 4-Stroke air-cooled direct injection

Combustion System:   Direct injection

Dispacement(L):   2.828

Bore X Strocking(mm):   100X120

Compression Ratio:   17:1

Air-Cooled Diesel Engine For Generator Sets

Governing      Machine Governor:   5%

                    Electronic Governor:   1%

Engine Continue Power(kw)   1500rpm:   24

                                           1800rpm:   28

Engine Maximum Power(kw) 1500rpm:   26

                                          1800rpm:   30

Generator Power(kw) Prime(Continue):   20

                               Standby(Maximum):   22

Noise dB(a) 1500rpm:   103

                  1800rpm:   103

Electric System:   12V/24V

Overall Dimension:   900×800×1040

Net Weight(kg):   275

Ref.QTY/20’FCL(SETS):   28
